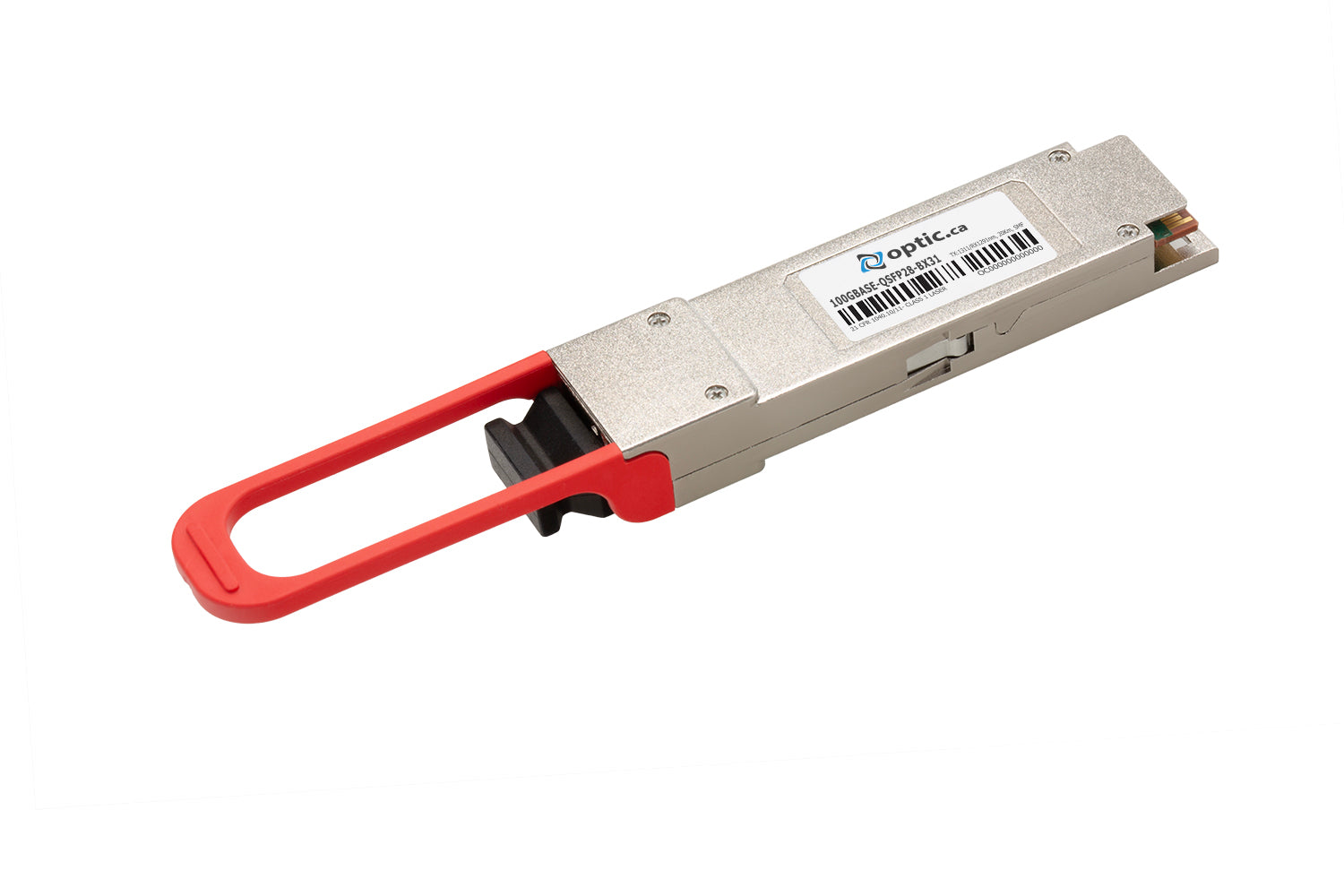

100GBASE-QSFP28 BIDI-D TX:1331NM, RX:1271NM, 10KM, SMF, 100% EXTREME NETWORKS COMPATIBLE
100% Extreme Networks® compatible 100GBASE-QSFP28-BX downstream optical transceiver provides 100G speeds over a distance of up to 10km over Single-Mode simplex fiber. It transmits over a wavelength of 1331nmTx / 1271nmRx using a LC UPC connector. It must be paired with compatible upstream transceiver of compatible wavelengths.
Item Attributes
| Compatible Brand | Extreme Networks® |
| Type | Transceivers |
| Cable Type | Single-Mode Fiber |
| Operating Temperature | COM (0 °C to 70°C) |
| Fiber Count | 1 Fiber / Simplex |
| Wavelength | TX: 1331nm / RX: 1271nm |
| Data Rate | 100GBASE - 100 Gbps |
| Form factor | QSFP28 |
| Max Reach | 10km |
| Connector Type | LC UPC |
| DDM | Yes |
| Transceiver Type | BX |
| TX Optical Power | -1.4dBm to 4.5dBm |
| RX Sensitivity | -6.1dBm |
