Dual CWDM MUX/DEMUX Duplex 4ch, LGX4-SP

Wavelength range
Compact Dual CWDM MUX/DEMUX for High-Performance Fiber Networks

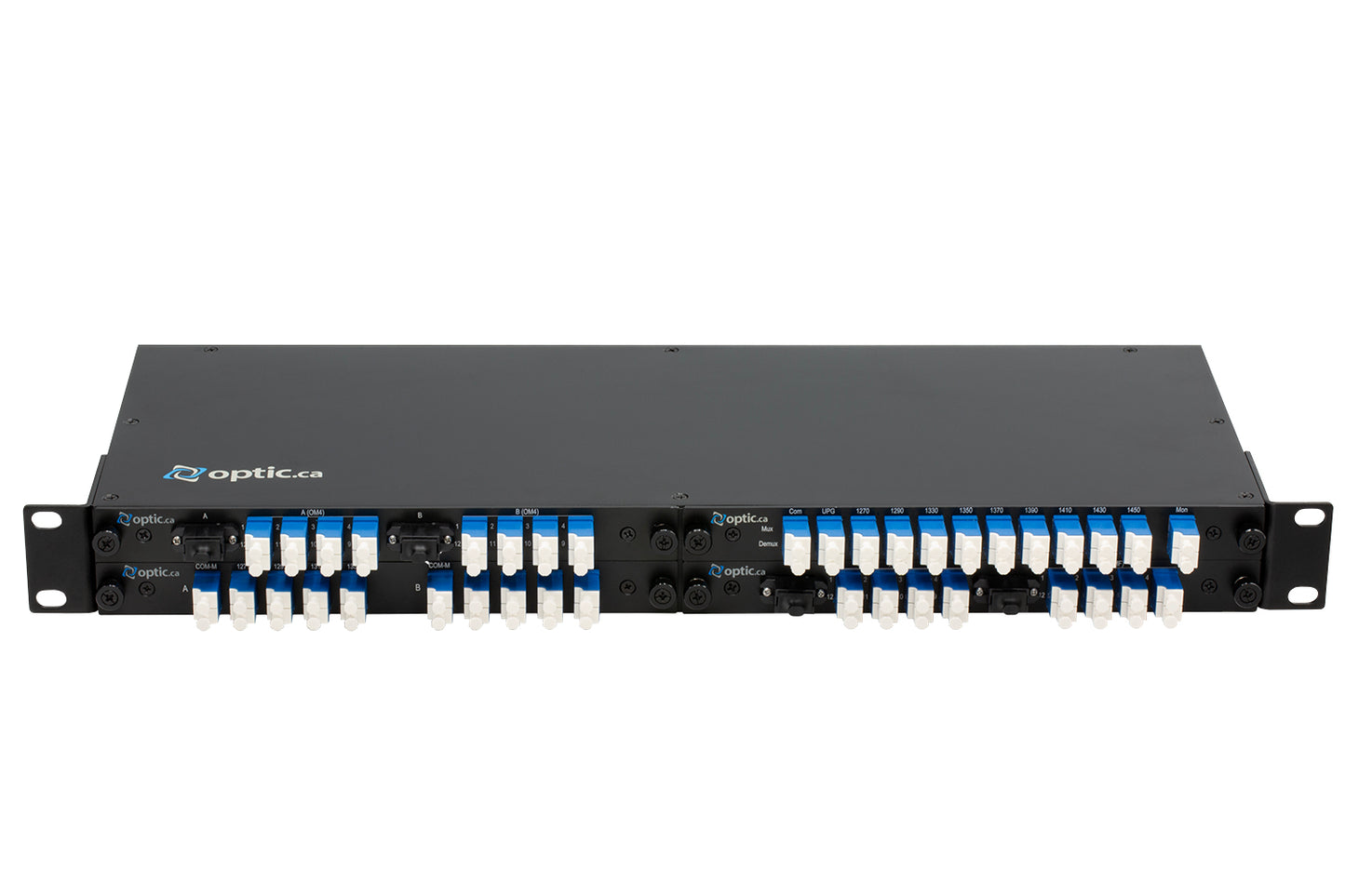

This unit is a dual CWDM MUX/DEMUX duplex 4-channel unit housed in a rugged LGX4-SP form factor. Engineered for precision and reliability, it enables seamless wavelength multiplexing across a single fiber pair—ideal for metro access, enterprise backbone, and industrial deployments.

Key Technical Specifications
Wavelength Range: CWDM channels from 1271 nm to 1611 nm, spaced at ±20nm.
Insertion Loss:
Multiplexer: Typical 1.60 dB, Maximum 1.80 dB
Demultiplexer: Typical 1.60 dB, Maximum 1.80 dB
Channel Ripple: Maximum 0.5 dB—ensures consistent signal performance across all channels.
Polarization Dependent Loss (PDL): Maximum 0.1 dB—minimizes signal distortion due to polarization effects.
Connectors: Equipped with high-quality LC/UPC Senko® connectors for monitor, expansion, and common ports—ensuring compatibility and ease of integration—these Senko® components are known for their precision engineering and consistent performance.

Form Factor and Build
LGX4-SP Enclosure: Compact and modular, suitable for use in 1RU rackmounts or wall-mount installations.
Dual Configuration: Supports two independent 4-channel CWDM paths—ideal for redundant or parallel fiber links.

CWDM operating wavelength
 1271nm to 1611nm
CWDM channels spacing ±20nm
CWDM Connectors type
Other ports connectors type
 LC/UPC Senko®
Com LC UPC Senko®
Multiplexer insertion Loss
Demultiplexer Insertion Loss		 Typ 1.60dB Max 1.8dB
Typ 1.60dB Max 1.8dB
Channel ripple Max 0.5dB
Polarization dependent loss Max 0.1dB
Polarization mode dispersion Max 0.10ps
Isolation, adjacent channel
Isolation, non-adjacent channel
 Min 30dB
Min 40dB
Directivity Min 50dB
Return loss Min 45dB
Fiber type SMF-28e
Operating temperature
Storage temperature
 -5 to +75 Celsius
-40 to +85 Celsius
Form factor Technologie Optic.ca LGX4-SP
L:152 x W:190-215 x H:21.5mm


Applications
Metro Ethernet and FTTH aggregation
Industrial fiber networks
Campus and enterprise backbone links
Passive optical LANs (POL)
