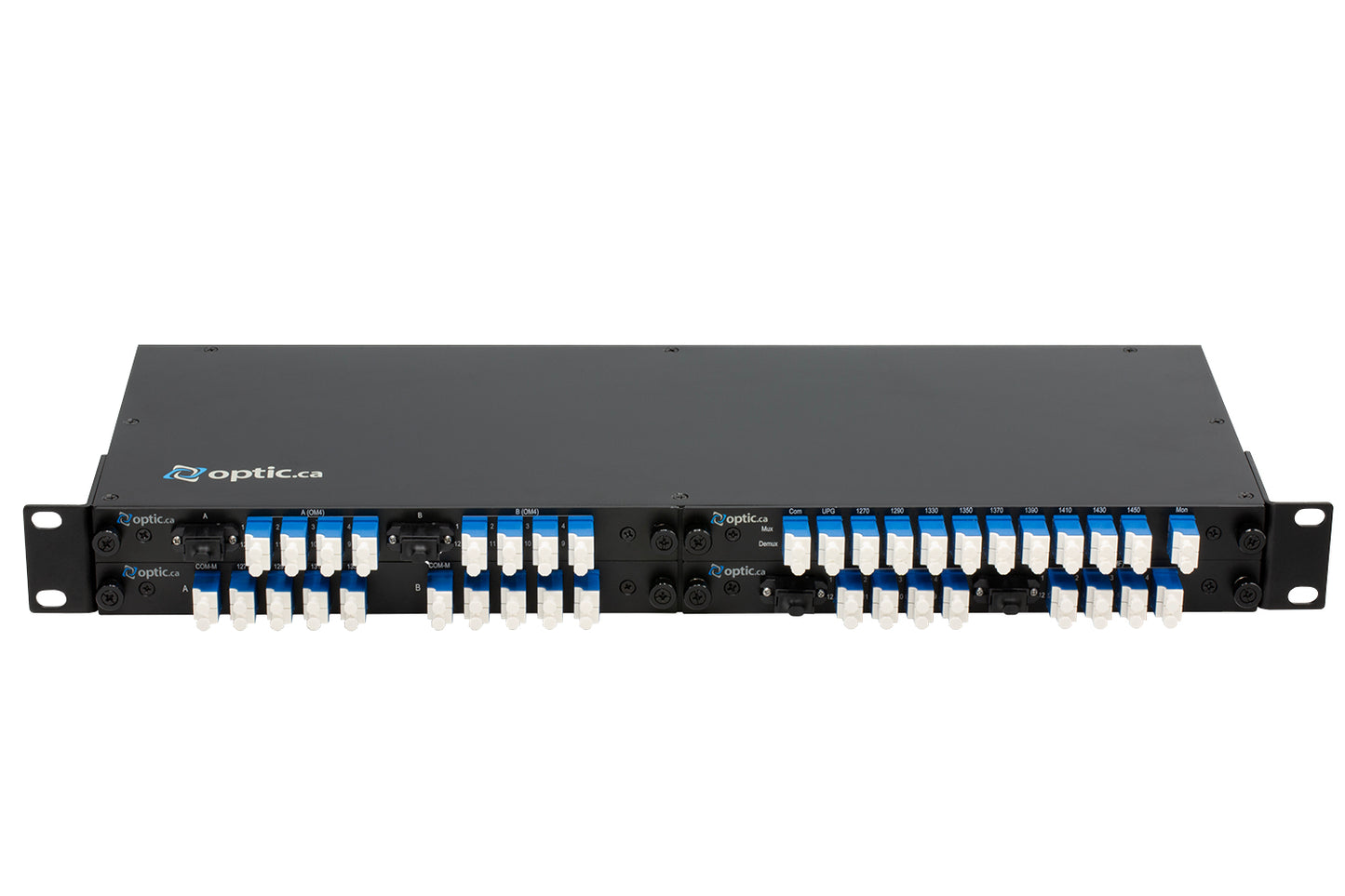

Dual WDM MUX/DEMUX Injector Duplex 2ch, 1310 and 1550nm, LGX4-SP

WDM operating wavelength
 1310nm and 1610nm
WDM channels spacing ±50nm
WDM Connectors type
Other ports connectors type
 LC/UPC Senko®
Com LC UPC Senko®
Multiplexer insertion Loss
Demultiplexer Insertion Loss		 Typ 1.01dB Max 1.2dB
Typ 0.99dB Max 1.2dB
Channel ripple Max 0.5dB
Polarization dependent loss Max 0.1dB
Polarization mode dispersion Max 0.10ps
Isolation, adjacent channel
Isolation, non-adjacent channel
 Min 30dB
Min 40dB
Directivity Min 50dB
Return loss Min 45dB
Fiber type SMF-28e
Operating temperature
Storage temperature
 -5 to +75 Celsius
-40 to +85 Celsius
Form factor Technologie Optic.ca LGX4-SP
L:152 x W:190-215 x H:21.5mm
View full details

  • A One Stop Shop

    At Technologie Optic.ca, we offer a complex range of passive multiplexing, OADM and TAP solutions. While our product fits most needs, we are the reference of choice for complex custom build products. Optic.ca was one of the first companies to design and distribute top quality and rugged custom multiplexing system here in Canada. We focus on offering design solutions optimised with signal integrity.

  • Trust

    Our solutions match or exceed industry leading tier 1 manufacturers. Rigorously engineered and tested, our products undergo severe quality control processes to ensure a seamless integration with customer application scenarios. We pride ourselves in delivering your order on time, and using only mission critical grade components, we offer “Fire and Forget” products that will work for decades and outlast most infrastructure they are used in.

  • Warranty

    Backed by the best warranty* and commitment to excellence and customer satisfaction, Our network equipment provide a dependable and unparalleled solution for your network needs.
