Technologie Optic.ca Inc.

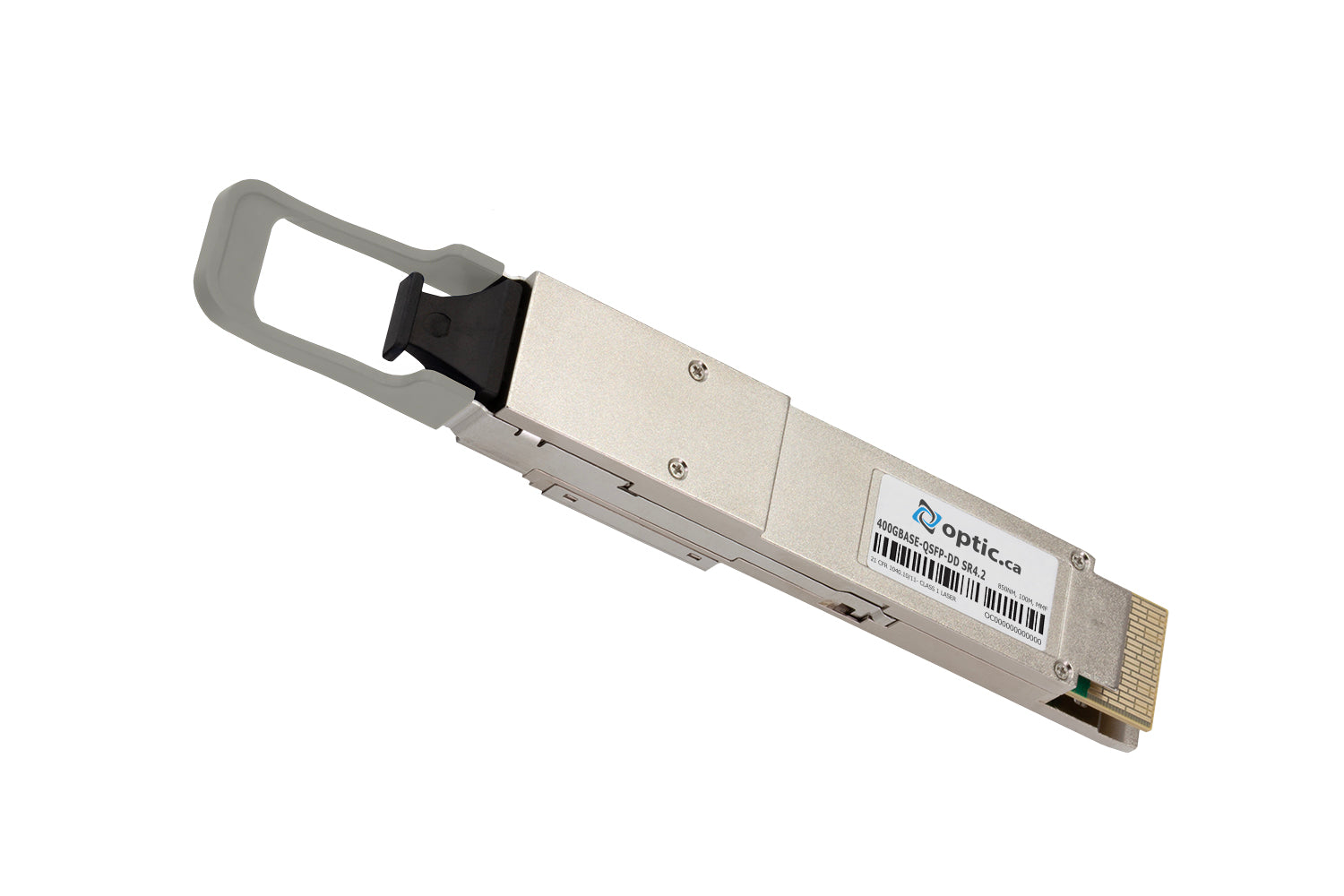

400GBASE-QSFP-DD SR4.2, 850/908NM, 100M OM4, MTP-12 UPC, MMF, 100% DELL COMPATIBLE

Introducing the 400GBASE-SR-BIDI 4.2 QSFP28 optical transceiver, a high-speed solution designed for seamless compatibility with Dell® products. Using multimode fiber and a MPO-12 UPC connector, it can reach speeds of 400Gbps over a distance of up to 100m.

This transceiver is perfect for high-bandwidth applications over short range transmissions, like data centers and campus networks. It can be used in 4 x 100G breakout mode for interoperability with 100GBASE-SR-BD 1.2.

Item Attributes
Compatible Brand Dell®
Type Transceivers
Cable Type Multimode Fiber
Operating Temperature COM (0 °C to 70°C)
Fiber Count 12 Fibers
Wavelength 847nm to 863nm / 900nm to 916nm
Data Rate 400GBASE - 400 Gbps
Form factor QSFP-DD
Max Reach 100m
Connector Type MPO-12 UPC Male
DDM Yes
Transceiver Type SR-BIDI
TX Optical Power -6.2dBm to 4dBm (Per Lane)
RX Sensitivity -8.2dBm (Per Lane)
View full details
  • In-House Coding

    At Technologie Optic.ca, we code and test all our transceivers to be 100% compatible in their intended target application. Today, the fiber-optic networking landscape is littered with “compatible” transceiver companies. Optic.ca was one of the first companies to design and distribute OEM Compatible transceivers in Canada.  We now design solutions for almost every equipment in the world.

  • Trust

    Our MTBF figures meet or exceed industry leading tier 1 manufacturers. Rigorously engineered and tested, our products undergo severe quality control processes to ensure seamless integration with a wide range of networking equipment. By adhering to industry benchmarks, our compatible transceivers deliver the same or better performance and reliability as OEM units.

  • Warranty

    Backed by our life time warranty* and commitment to excellence and customer satisfaction, our compatible transceivers provide a dependable and efficient solution for your network needs.
