Technologie Optic.ca Inc.

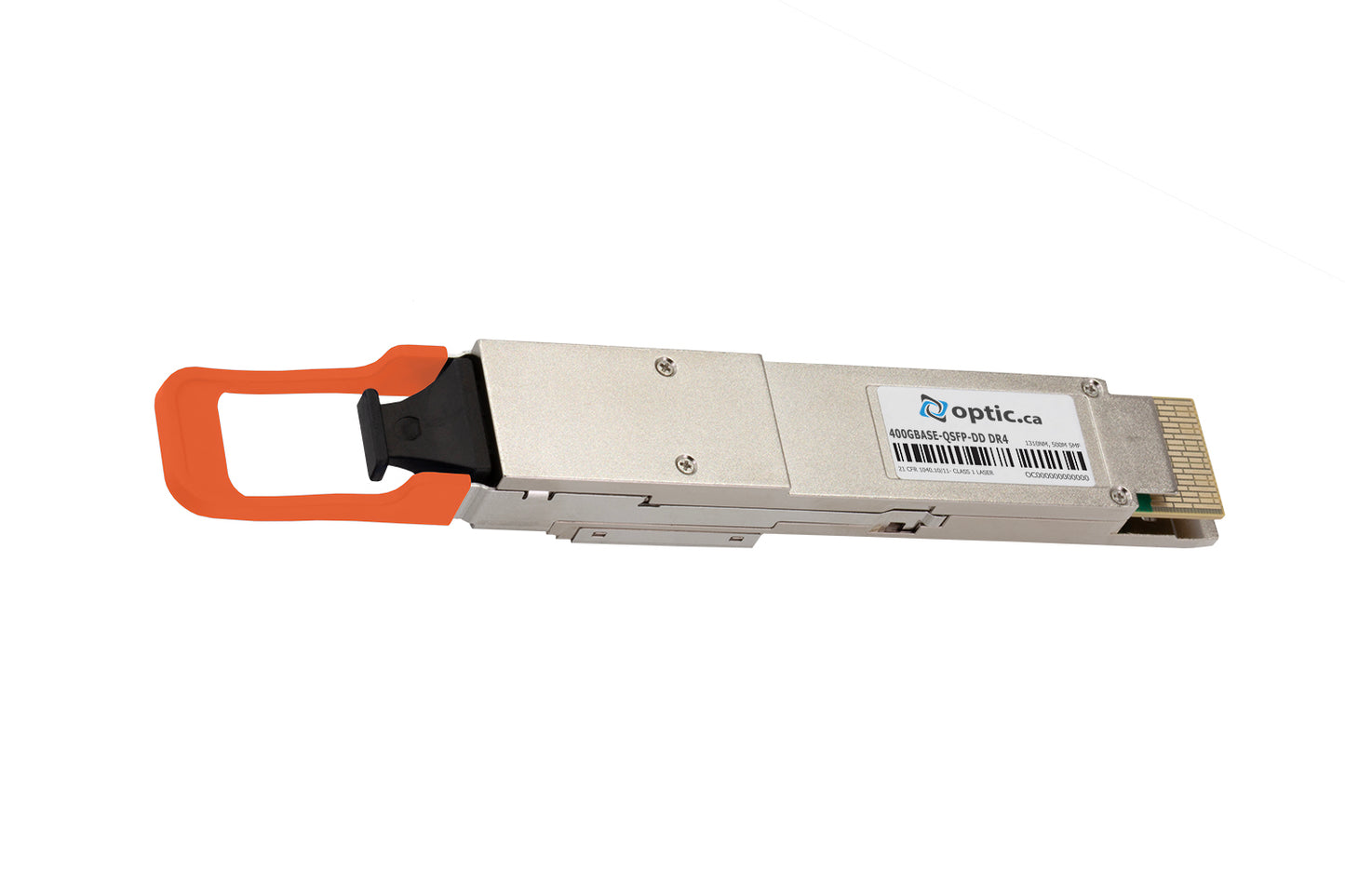

400GBASE-QSFP-DD DR4, 1310NM, 500M, MPO-12 APC, SMF, 100% DELL COMPATIBLE
The Dell® compatible 400GBASE-QSFP-DD DR4 (Quad Small Form-Factor Pluggable - Double Density) optical transceiver offers one the highest bandwidth density in the industry and can be used as 4x100G breakout to QSFP28 100G-DR.
Engineered to meet or exceed OEM performance, it supports link lengths of up to 500m on Singlemode fiber and uses a MPO-12 APC connector. It is fully compliant with the IEEE 802.3bs 400GBASE-DR4 specifications.
Item Attributes
| Compatible Brand | Dell® |
| Type | Transceivers |
| Cable Type | Single-Mode Fiber |
| Operating Temperature | COM (0 °C to 70°C) |
| Fiber Count | 2 Fibers / Duplex |
| Wavelength | 1310nm |
| Data Rate | 400GBASE - 400 Gbps |
| Form factor | QSFP-DD |
| Max Reach | 500m |
| Connector Type | MPO-12 APC Male |
| DDM | Yes |
| Transceiver Type | DR4 |
| TX Optical Power | -2.9dBm to 4dBm (Per Lane) |
| RX Sensitivity | -5.9dBm (Per Lane) |
Share
-
Global Compatibility, Canadian Precision
Every Optic.ca transceiver is coded in-house for flawless compatibility and thoroughly tested to ensure performance across global networking platforms—trusted worldwide, proudly Canadian.
-
Reliability Engineered for Performance
Our transceivers meet or exceed Tier 1 MTBF standards. Rigorously tested for seamless integration, they deliver OEM-level reliability—while keeping your project on budget.
-
Lifetime Warranty, Total Peace of Mind
Backed by our lifetime warranty* and unwavering commitment to quality, Optic.ca transceivers deliver the mission-critical reliability your network demands.
