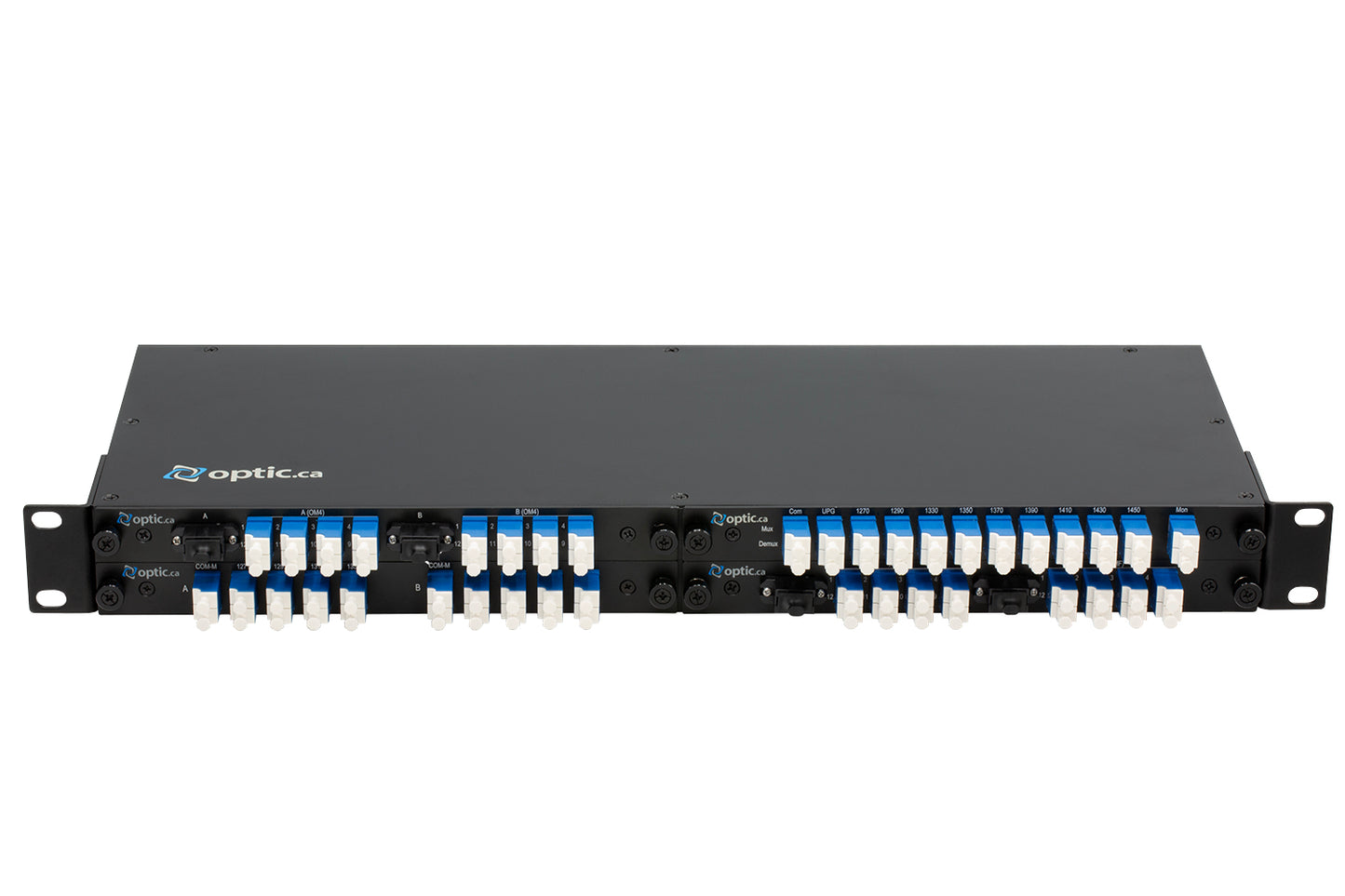

CWDM MUX/DEMUX Duplex 8ch, 1310nm bypass port, MON port and UPG port. LGX4-SP
8-Channel CWDM MUX/DEMUX with 1310nm Bypass port
This unit is a high-performance 8-channel Coarse Wavelength Division Multiplexer/Demultiplexer (CWDM) engineered for carrier-grade optical networking. Designed for LGX4-SP modular chassis, it enables efficient wavelength multiplexing and demultiplexing, maximizing fiber utilization in metro, access, and enterprise environments.
Technical Highlights
Channel Configuration: 8 CWDM channels operating from 1470nm to 1610nm, spaced at 20 nm intervals for optimal spectral efficiency.
1310nm Bypass Port:
- Seamless Legacy Integration: The dedicated 1310nm bypass allows you to carry existing Gigabit Ethernet, SONET/SDH, or legacy traffic without disruption.
- Zero Service Interruption: Add or remove wavelengths without impacting the 1310 nm channel.
- Future-Proof Design: Supports migration from legacy systems to CWDM without costly infrastructure changes.
Upgrade Port (UPG): Provides a scalable path for adding more channels as network demands grow.
Monitoring Port (MON): Enables real-time optical power monitoring for proactive troubleshooting and performance assurance.
Low Insertion Loss: Maintains signal integrity across all channels.
High Channel Isolation: Minimizes crosstalk for superior transmission quality.
Compact LGX4 Form Factor: Ideal for space-constrained racks and modular platforms.
| CWDM operating wavelength |
1370nm to 1510nm spacing: ±20nm 1470nm to 1610nm spacing: ±20nm |
| Bypass wavelength spacing | 1310nm spacing: ±50nm |
| CWDM Connectors type Other ports connectors type |
LC/UPC Senko® Bypass, Monitor, Expansion, Com LC UPC Senko® |
| Multiplexer insertion Loss Demultiplexer Insertion Loss |
Typ 2.65dB Max 3.2dB Typ 2.68dB Max 3.2dB |
| Channel ripple | Max 0.5dB |
| Polarization dependent loss | Max 0.1dB |
| Polarization mode dispersion | Max 0.10ps |
| Isolation, adjacent channel Isolation, non-adjacent channel Isolation, bypass 1310nm |
Min 30dB Min 40dB Min 15dB |
| Directivity | Min 50dB |
| Return loss | Min 45dB |
| Fiber type | SMF-28e |
| Operating temperature Storage temperature |
-5 to +75 Celsius -40 to +85 Celsius |
| Form factor | Technologie Optic.ca LGX4-SP L:152 x W:190-215 x H:21.5mm |
Applications
Metro and Regional Networks: Expand bandwidth without deploying new fiber.
Enterprise Connectivity: Aggregate multiple services over a single fiber pair.
Access Networks: Deliver cost-effective wavelength services to customers.
Why choose this solution?
Unmatched 1310nm Flexibility: Preserve and integrate legacy traffic while scaling to CWDM.
Scalable Design: Upgrade-ready architecture supports future growth.
Carrier-Grade Reliability: Built to meet stringent industry standards for uptime and performance.
Cost Efficiency: Reduce CAPEX and OPEX by leveraging existing fiber assets.
