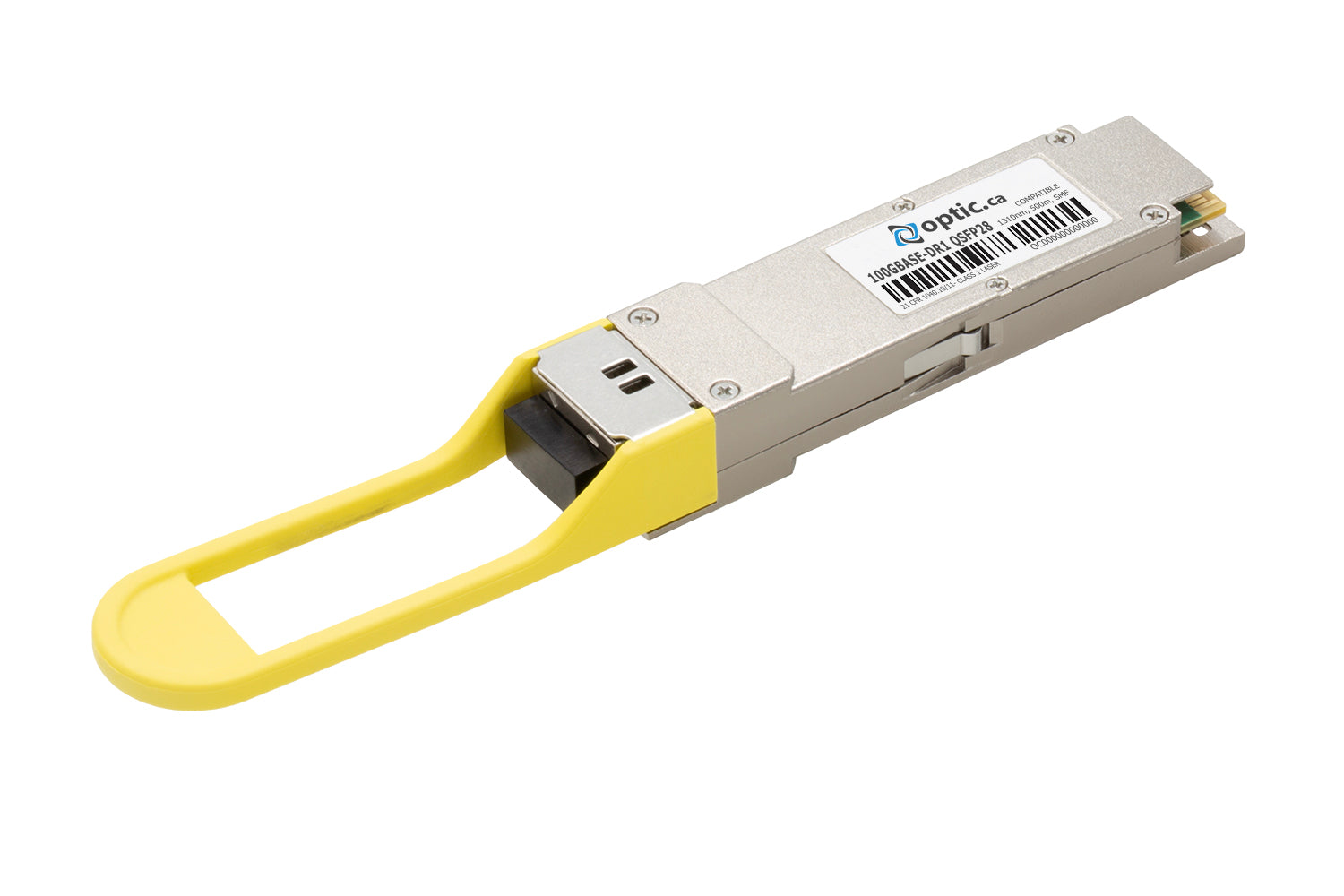

100GBASE-DR1 QSFP28, 1310NM SINGLE LAMBDA, 500M, SMF, 100% EDGE-CORE COMPATIBLE

Introducing the 100% Edge-Core® compatible 100G-DR1 optical transceiver, engineered for high-speed, reliable, and efficient network connectivity. With data rates reaching up to 100 Gbps over a distance of up to 500m, this transceiver leverages advanced PAM4 modulation to ensure your network can handle bandwidth-intensive applications seamlessly.

Its compact QSFP28 form factor facilitates easy deployment across diverse network environments, from data centers to enterprise networks. It uses a LC UPC connector and features built-in DDM (Digital Diagnostic Monitoring).

Item Attributes
Compatible Brand Edge-Core®
Type Transceivers
Cable Type Single-Mode Fiber
Operating Temperature COM (0 °C to 70°C)
Fiber Count 2 Fibers / Duplex
Wavelength 1310nm
Data Rate 100GBASE - 100 Gbps
Form factor QSFP28
Max Reach 500m
Connector Type LC UPC
DDM Yes
Transceiver Type DR1
TX Optical Power -2.9dBm to +4dBm
RX Sensitivity -5.9dBm
