Technologie Optic.ca Inc.

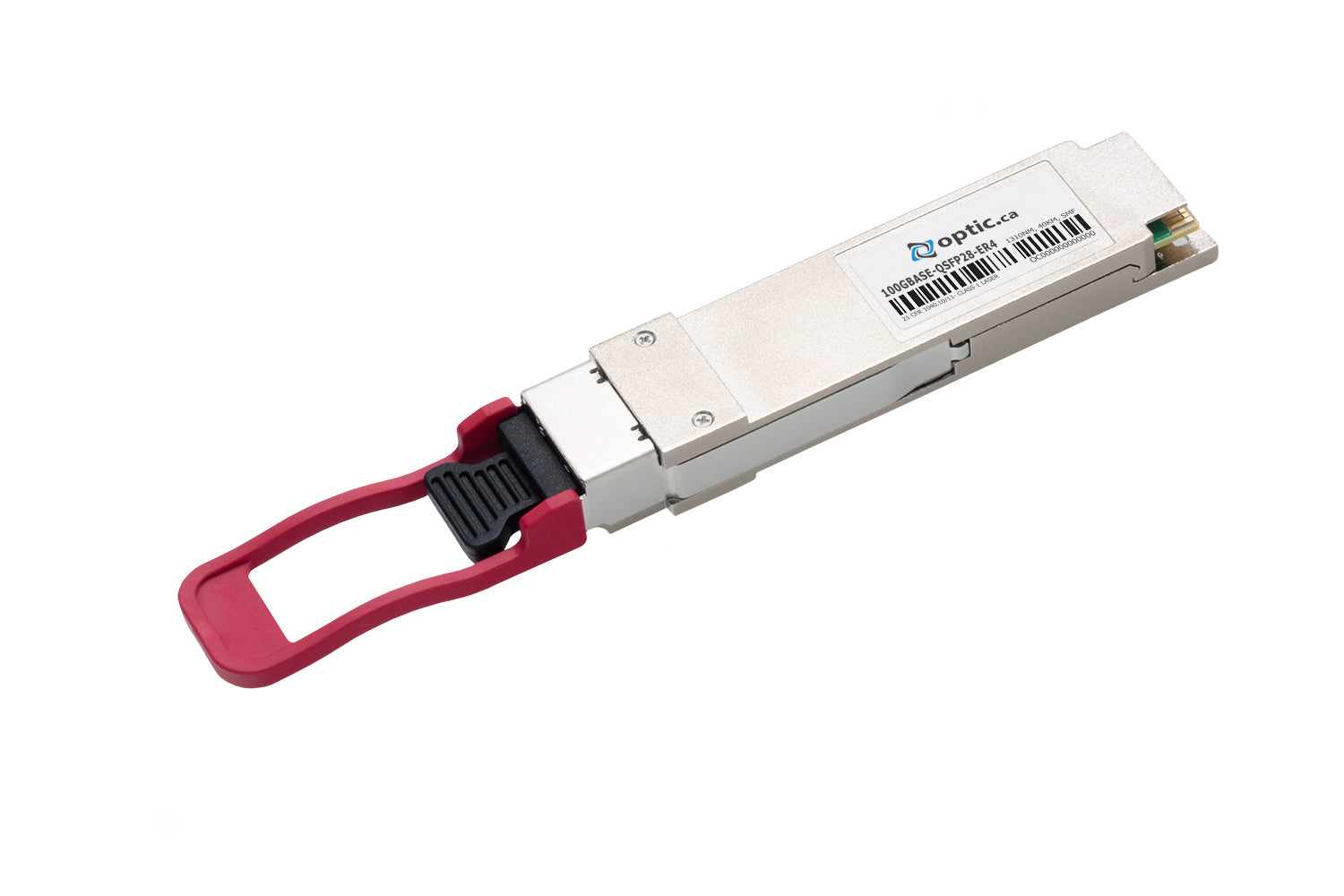

100GBASE-ER4 QSFP28, 1270/1290/1310/1330, 30KM, SMF, 100% EDGE-CORE COMPATIBLE

Edge-Core® compatible 100GBASE-ER4 QSFP28 optical transceiver is the ideal solution for high-speed, long distance transmissions. It provides link speeds of 100G up to 30km (40km with host FEC) over Single-Mode fiber, using a LC UPC connector. The signal is multiplexed and demultiplexed within the transceiver and is transmitted over 4 wavelengths, from 1295nm to 1309nm.

Often used for data transmissions between data centers, school campuses and other applications where speed and distance are mission critical. With years of expertise in custom coding, our transceivers are engineered to meet or exceed OEM technical specifications. Features built-in DDM (Digital Diagnostic Monitoring) and is fully compliant to the IEEE 802.3bm standard.

Item Attributes
Compatible Brand Edge-Core®
Type Transceivers
Cable Type Single-Mode Fiber
Operating Temperature COM (0 °C to 70°C)
Fiber Count 2 Fibers / Duplex
Wavelength 1294.53nm to 1310.19nm
Data Rate 100GBASE - 100 Gbps
Form factor QSFP28
Max Reach 30km / 40km with FEC
Connector Type LC UPC
DDM Yes
Transceiver Type ER4
TX Optical Power -2.5dBm to 6.5dBm (Per Lane)
RX Sensitivity -20.5dBm (Per Lane)
View full details
  • In-House Coding

    At Technologie Optic.ca, we code and test all our transceivers to be 100% compatible in their intended target application. Today, the fiber-optic networking landscape is littered with “compatible” transceiver companies. Optic.ca was one of the first companies to design and distribute OEM Compatible transceivers in Canada.  We now design solutions for almost every equipment in the world.

  • Trust

    Our MTBF figures meet or exceed industry leading tier 1 manufacturers. Rigorously engineered and tested, our products undergo severe quality control processes to ensure seamless integration with a wide range of networking equipment. By adhering to industry benchmarks, our compatible transceivers deliver the same or better performance and reliability as OEM units.

  • Warranty

    Backed by our life time warranty* and commitment to excellence and customer satisfaction, our compatible transceivers provide a dependable and efficient solution for your network needs.
