Technologie Optic.ca Inc.

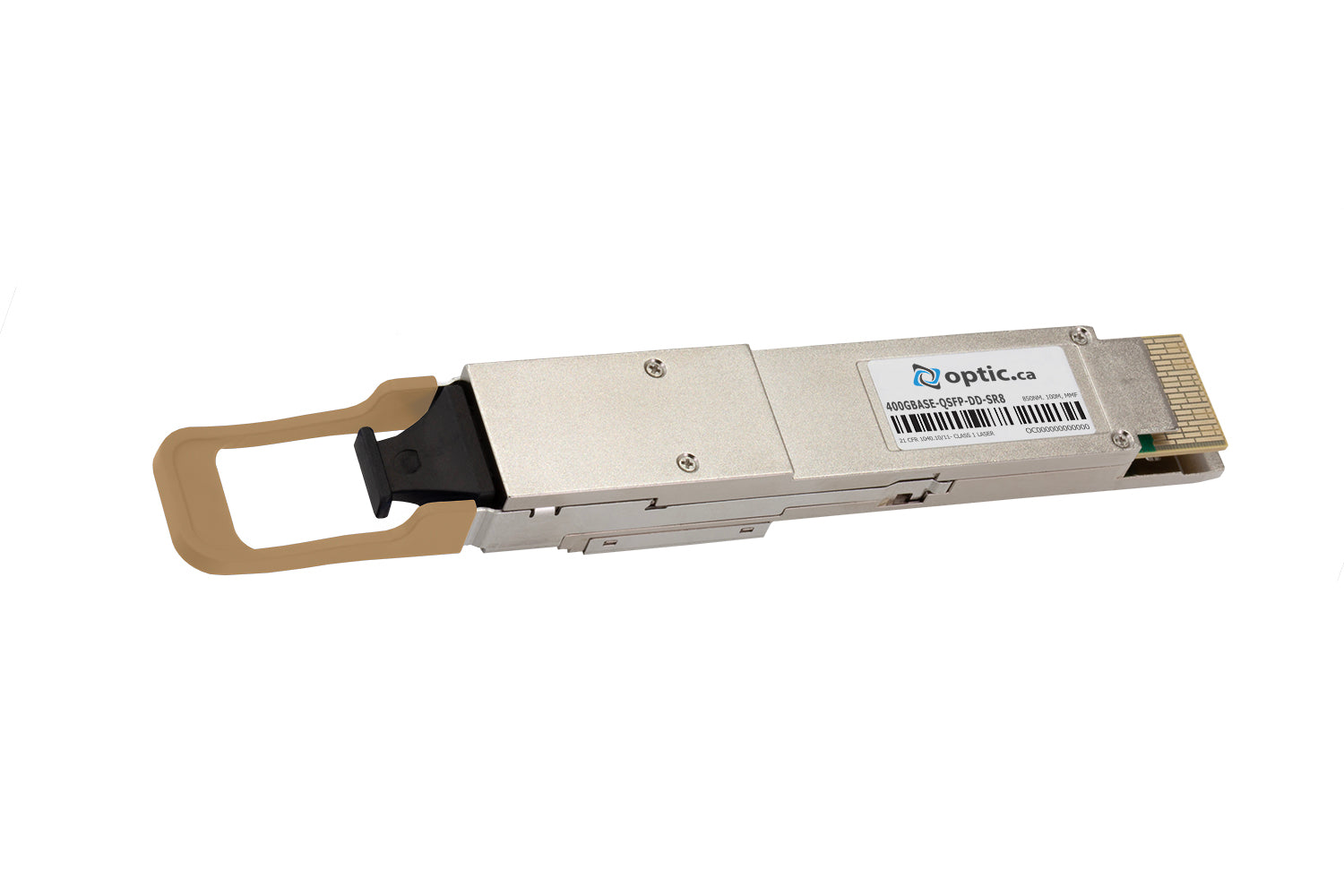

400GBASE-QSFP-DD SR8, 850NM, MPO-16 APC, 100M, MMF, 100% EDGE-CORE COMPATIBLE
The Edge-Core® compatible 400GBASE-QSFP-DD SR8 (Quad Small Form-Factor Pluggable - Double Density) optical transceiver offers one the highest bandwidth density in the industry while maintaining compatibility with 8x 50G breakout to SFP56-50G-SR modules or 2x QSFP-200G-SR4 modules.
Item Attributes
| Compatible Brand | Edge-Core® |
| Type | Transceivers |
| Cable Type | Multimode Fiber |
| Operating Temperature | COM (0 °C to 70°C) |
| Fiber Count | 16 Fibers |
| Wavelength | 850nm |
| Data Rate | 400GBASE - 400 Gbps |
| Form factor | QSFP-DD |
| Max Reach | 100m |
| Connector Type | MPO-16 APC Male |
| DDM | Yes |
| Transceiver Type | SR8 |
| TX Optical Power | -6.5dBm to +4dBm (Per Lane) |
| RX Sensitivity | -8.4dBm (Per Lane) |
