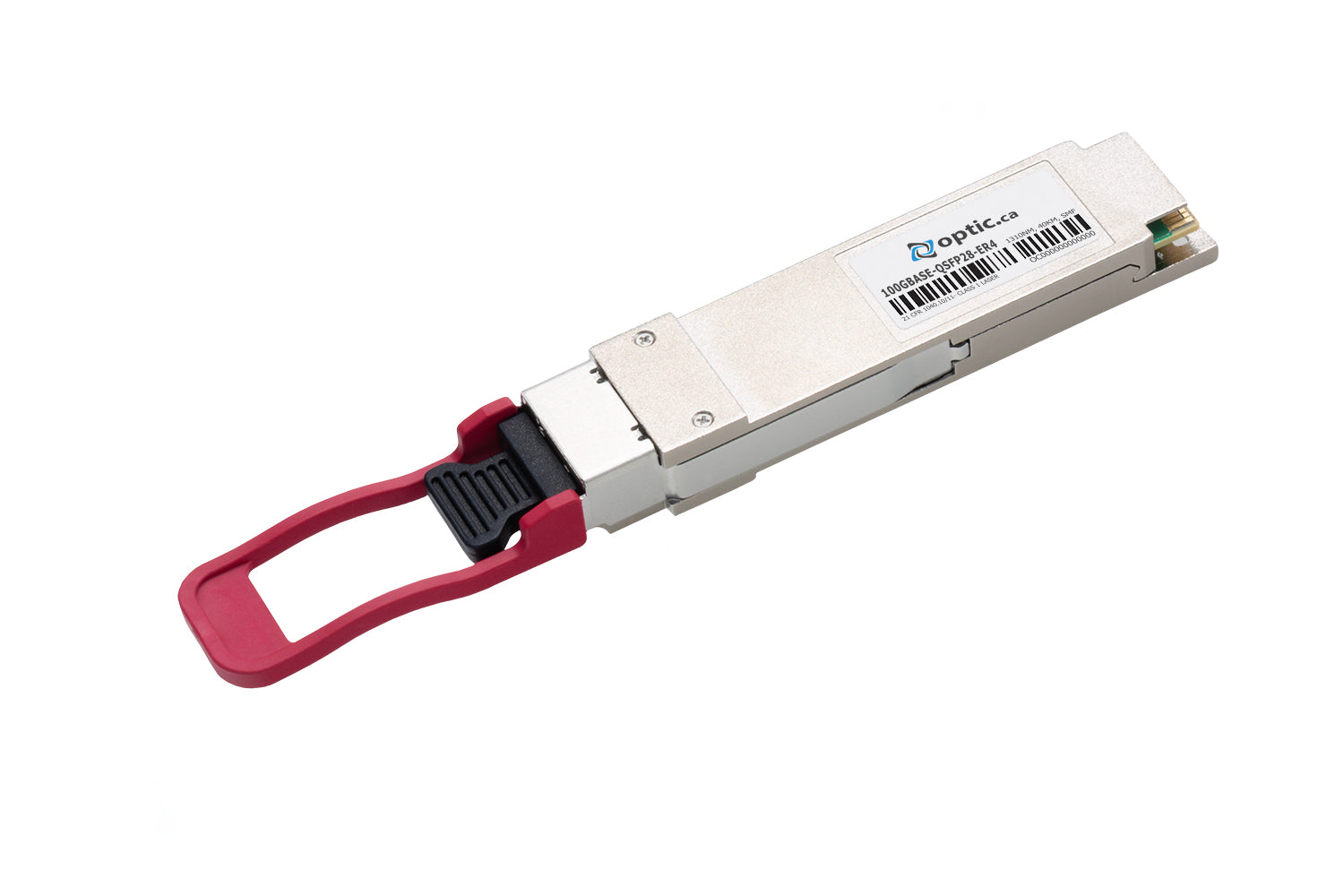

100GBASE-ER4 QSFP28, LWDM 1295.56NM-1309.14NM, 30KM, SMF LC DDM, 100% ARUBA COMPATIBLE
Aruba® compatible 100GBASE-ER4 QSFP28 optical transceiver is the ideal solution for high-speed, long distance transmissions. It provides link speeds of 100G up to 30km (40km with host FEC) over Single-Mode fiber, using a LC UPC connector. The signal is multiplexed and demultiplexed within the transceiver and is transmitted over 4 wavelengths, from 1295nm to 1309nm.
Item Attributes
| Compatible Brand | Aruba® |
| Type | Transceivers |
| Cable Type | Single-Mode Fiber |
| Operating Temperature | COM (0 °C to 70°C) |
| Fiber Count | 2 Fibers / Duplex |
| Wavelength | LWDM: 1295.56 / 1300.06 / 1304.59 / 1309.14nm |
| Data Rate | 100GBASE - 100 Gbps |
| Form factor | QSFP28 |
| Max Reach | 30km / 40km with FEC |
| Connector Type | LC UPC |
| DDM | Yes |
| Transceiver Type | ER4 |
| TX Optical Power | -2.5dBm to 6.5dBm (Per Lane) |
| RX Sensitivity | -20.5dBm (Per Lane) |
