Technologie Optic.ca Inc.

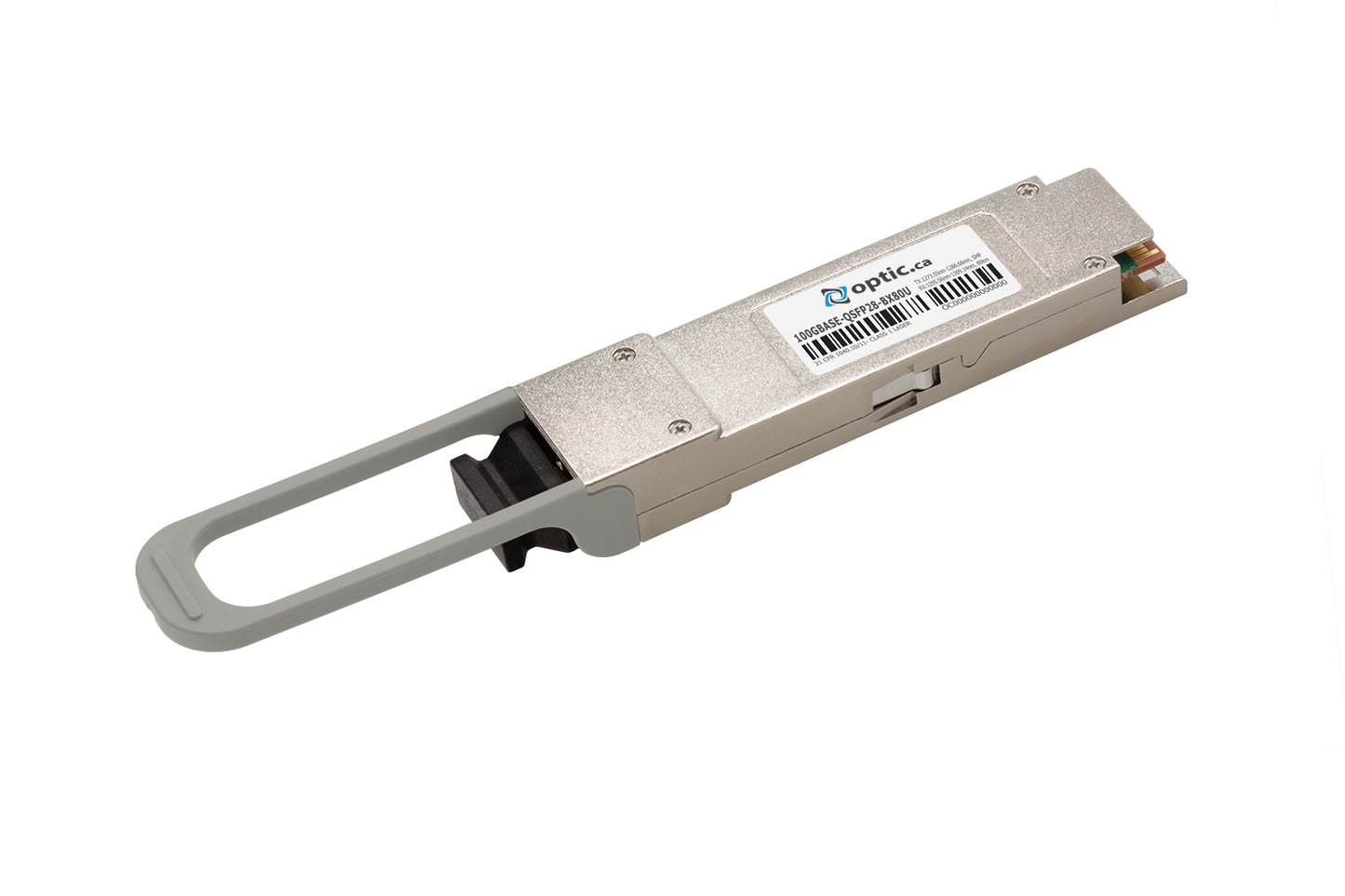

100GBASE-QSFP28-BIDI-U, 80KM, SMF, 100% JUNIPER COMPATIBLE
100% Juniper® compatible 100GBASE-QSFP28-BX upstream optical transceiver provides 100G speeds over a distance of up to 80km over Single-Mode simplex fiber. It transmits over a wavelength range of 1273.55nm-1286.66nmTx / 1295.56nm-1309.14nmRx using a LC UPC connector. It must be paired with compatible downstream transceiver of compatible wavelength ranges.
Our transceivers are engineered and custom coded to meet or exceed OEM technical specifications. Features built-in DDM (Digital Diagnostic Monitoring) and is covered by a lifetime warranty.
Item Attributes
| Compatible Brand | Juniper Networks® |
| Type | Transceivers |
| Cable Type | Single-Mode Fiber |
| Operating Temperature | COM (0 °C to 70°C) |
| Fiber Count | 1 Fiber / Simplex |
| Wavelength | TX: 1273.55NM - 1286.66NM / RX: 1295.56NM - 1309.14NM |
| Data Rate | 100GBASE - 100 Gbps |
| Form factor | QSFP28 |
| Max Reach | 80km |
| Connector Type | LC UPC |
| DDM | Yes |
| Transceiver Type | BX |
| TX Optical Power | 2dBm to 6dBm (Per Lane) |
| RX Sensitivity | -28dBm (Per Lane) |
Share
-
Global Compatibility, Canadian Precision
Every Optic.ca transceiver is coded in-house for flawless compatibility and thoroughly tested to ensure performance across global networking platforms—trusted worldwide, proudly Canadian.
-
Reliability Engineered for Performance
Our transceivers meet or exceed Tier 1 MTBF standards. Rigorously tested for seamless integration, they deliver OEM-level reliability—while keeping your project on budget.
-
Lifetime Warranty, Total Peace of Mind
Backed by our lifetime warranty* and unwavering commitment to quality, Optic.ca transceivers deliver the mission-critical reliability your network demands.
