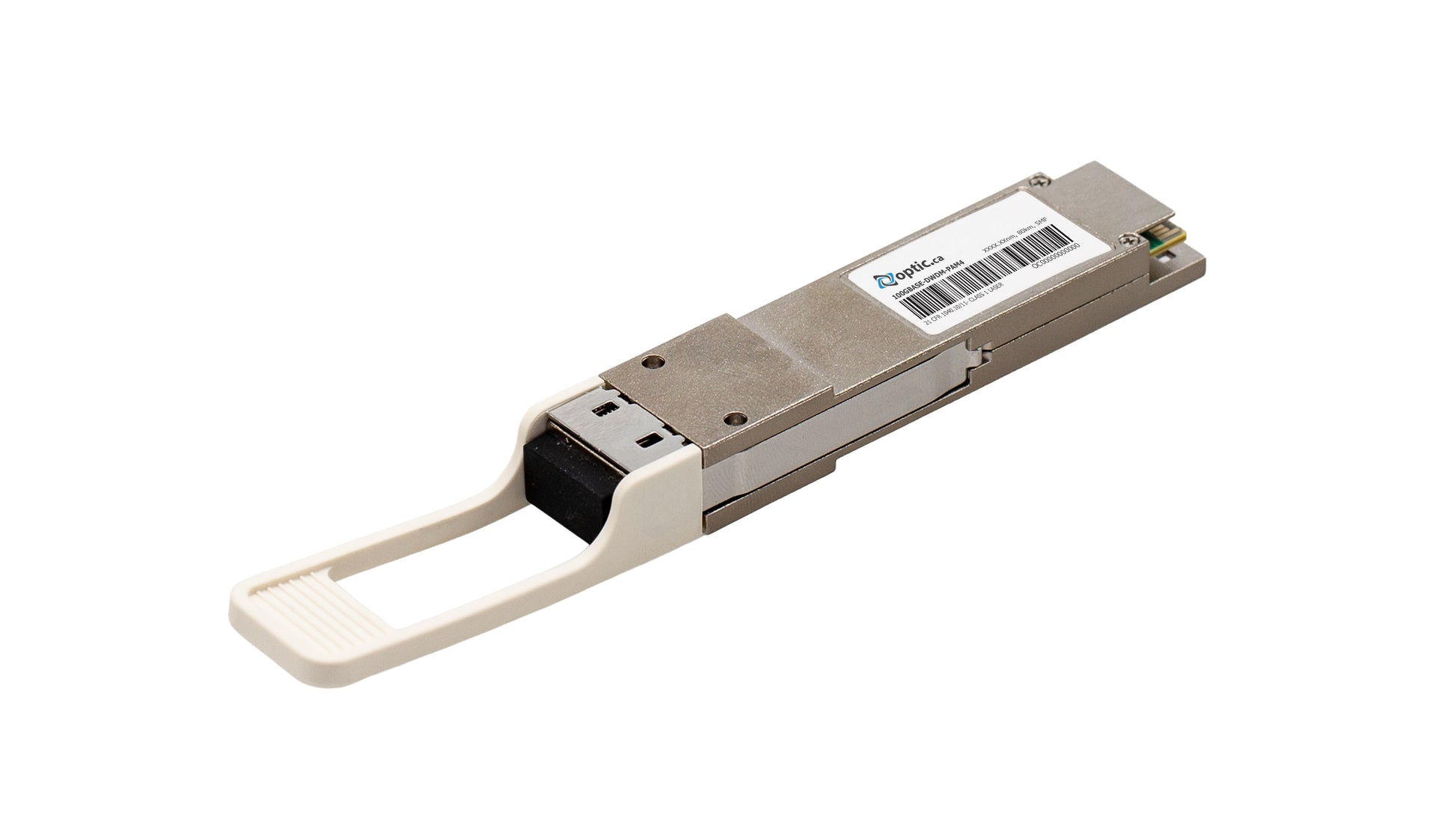

• OPTIC.CA - 100GBASE-DWDM QSFP28 - JNP-QSFP-100G-DWxx-OC - JUNIPER COMPATIBLE
1 1

Technologie Optic.ca Inc.

100GBASE-DWDM QSFP28, PAM4 CH17 - CH61, 80KM w/EDFA-DCM, SMF, DDM, 100% JUNIPER COMPATIBLE

Wavelengths
100% Juniper® compatible 100GBASE-DWDM optical transceiver, engineered for duplex optical data communications in amplified DWDM networks. It supports 100Gbps data rates over single-mode fiber with an extended reach of up to 80 km, requiring EDFA and DCM for optimal signal integrity.

Operating on the ITU-T 100GHz DWDM grid, this module transmits within the C-Band spectrum (1528.77 nm to 1565.50 nm), enabling multiple data streams over a single fiber for maximum efficiency. It is ideal for metropolitan access, core networks, and data center interconnects, where bandwidth and scalability are critical.


Item Attributes
Compatible Brand Juniper®
Type Transceivers
Cable Type Single-Mode Fiber
Operating Temperature COM (0 °C to 70°C)
Fiber Count 2 Fibers / Duplex
Available DWDM channels 1563.86nm to 1528.77nm
Data Rate 100GBASE - 100 Gbps
Form factor QSFP28
Max Reach 80km w/ EDFA & DCM
Connector Type LC UPC
DDM Yes
Transceiver Type DWDM
TX Optical Power -4.8dBm to 4.2dBm
RX Sensitivity 4.7dBm
Damage Threshold 5.5dBm

DWDM C-Band 100GHz Spacing Table
