• OPTIC.CA - 100GBASE-DWDM QSFP28 - QSFP-100G-DWxx-PAM4-80KM-OC - CISCO COMPATIBLE
1 1

Technologie Optic.ca Inc.

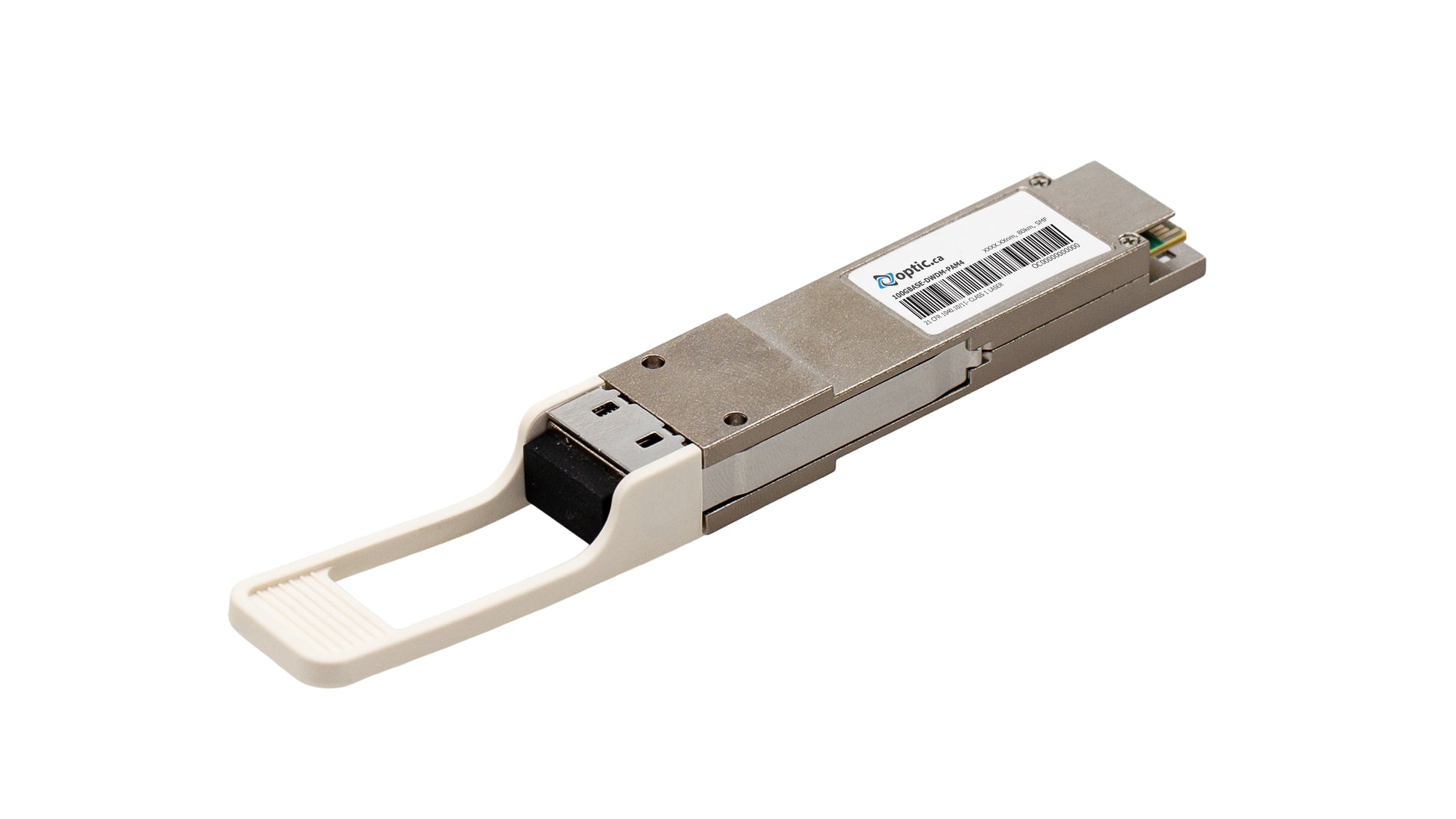

100GBASE-DWDM QSFP28, PAM4 CH17 - CH61, 80KM w/EDFA-DCM, SMF, DDM, 100% CISCO COMPATIBLE

Wavelengths
100% Cisco® compatible 100GBASE-DWDM optical transceiver, engineered for duplex optical data communications in amplified DWDM networks. It supports 100Gbps data rates over single-mode fiber with an extended reach of up to 80 km, requiring EDFA and DCM for optimal signal integrity.

Operating on the ITU-T 100GHz DWDM grid, this module transmits within the C-Band spectrum (1528.77 nm to 1565.50 nm), enabling multiple data streams over a single fiber for maximum efficiency. It is ideal for metropolitan access, core networks, and data center interconnects, where bandwidth and scalability are critical.


Item Attributes
Compatible Brand Cisco®
Type Transceivers
Cable Type Single-Mode Fiber
Operating Temperature COM (0 °C to 70°C)
Fiber Count 2 Fibers / Duplex
Available DWDM channels 1563.86nm to 1528.77nm
Data Rate 100GBASE - 100 Gbps
Form factor QSFP28
Max Reach 80km w/ EDFA & DCM
Connector Type LC UPC
DDM Yes
Transceiver Type DWDM
TX Optical Power -4.8dBm to 4.2dBm
RX Sensitivity 4.7dBm
Damage Threshold 5.5dBm

DWDM C-Band 100GHz Spacing Table

View full details

  • Global Compatibility, Canadian Precision

    Every Optic.ca transceiver is coded in-house for flawless compatibility and thoroughly tested to ensure performance across global networking platforms—trusted worldwide, proudly Canadian.

  • Reliability Engineered for Performance

    Our transceivers meet or exceed Tier 1 MTBF standards. Rigorously tested for seamless integration, they deliver OEM-level reliability—while keeping your project on budget.

  • Lifetime Warranty, Total Peace of Mind

    Backed by our lifetime warranty* and unwavering commitment to quality, Optic.ca transceivers deliver the mission-critical reliability your network demands.
