Technologie Optic.ca Inc.

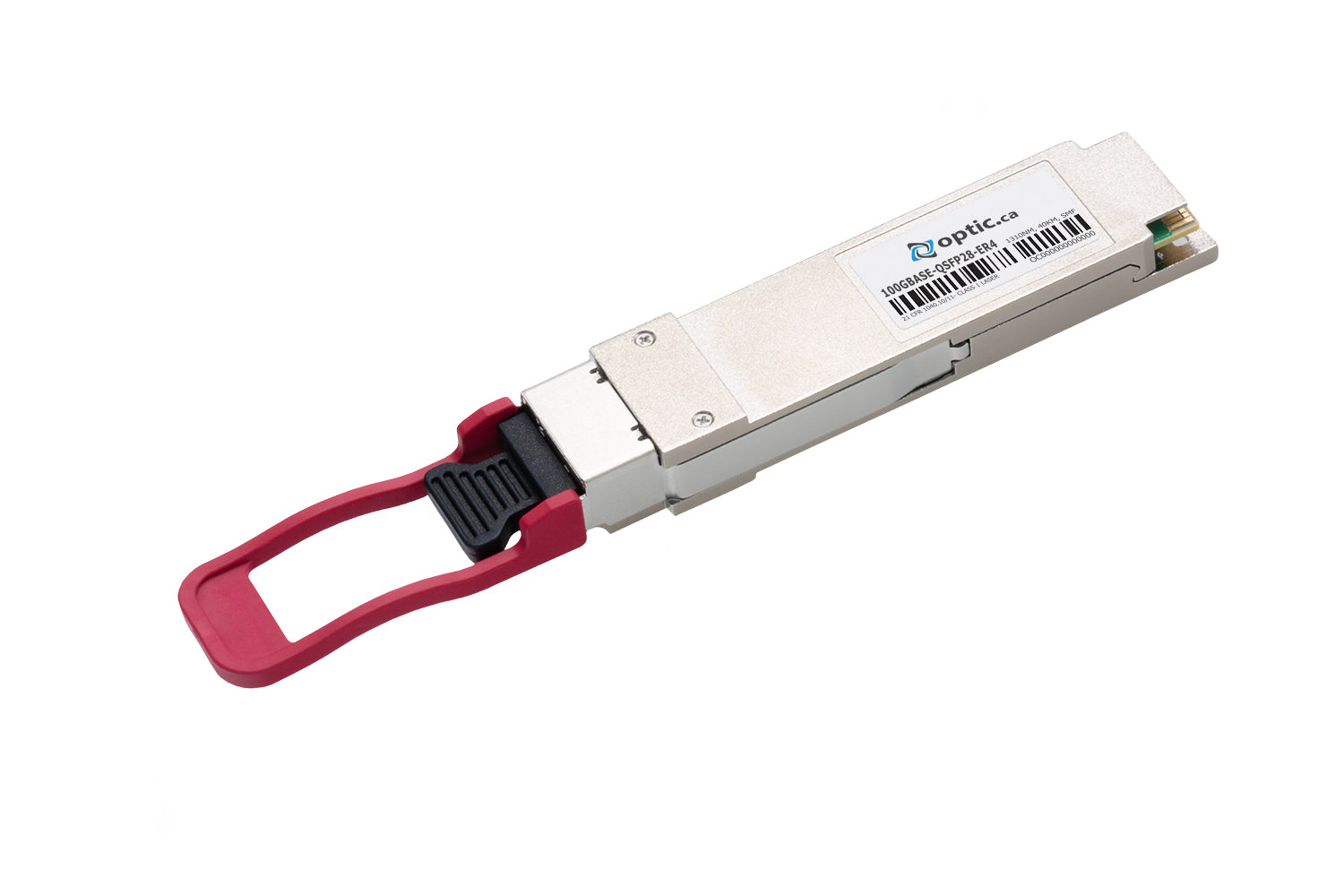

100GBASE-ER4 QSFP28, LWDM 1295.56NM-1309.14NM, 30KM, SMF LC DDM, 100% ARISTA COMPATIBLE

Arista® compatible 100GBASE-ER4 QSFP28 optical transceiver is the ideal solution for high-speed, long distance transmissions. It provides link speeds of 100G up to 30km (40km with host FEC) over Single-Mode fiber, using a LC UPC connector. The signal is multiplexed and demultiplexed within the transceiver and is transmitted over 4 wavelengths, from 1295nm to 1309nm.

Often used for data transmissions between data centers, school campuses and other applications where speed and distance are mission critical. With years of expertise in custom coding, our transceivers are engineered to meet or exceed OEM technical specifications. Features built-in DDM (Digital Diagnostic Monitoring) and is fully compliant to the IEEE 802.3bm standard.

Item Attributes
Compatible Brand Arista®
Type Transceivers
Cable Type Single-Mode Fiber
Operating Temperature COM (0 °C to 70°C)
Fiber Count 2 Fibers / Duplex
Wavelength LWDM: 1295.56 / 1300.06 / 1304.59 / 1309.14nm
Data Rate 100GBASE - 100 Gbps
Form factor QSFP28
Max Reach 30km / 40km with FEC
Connector Type LC UPC
DDM Yes
Transceiver Type ER4
TX Optical Power -2.5dBm to 6.5dBm (Per Lane)
RX Sensitivity -20.5dBm (Per Lane)
View full details
