Technologie Optic.ca Inc.

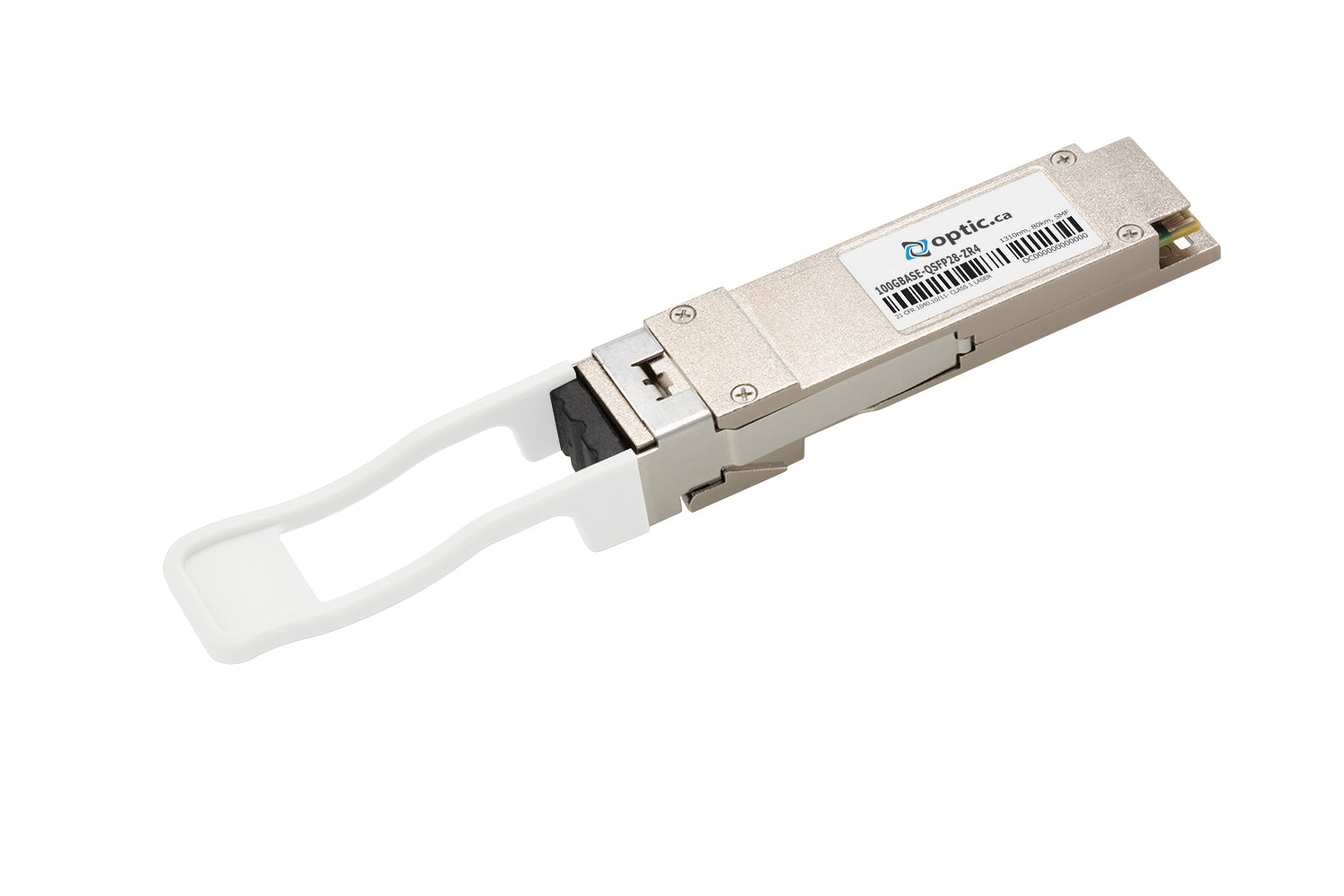

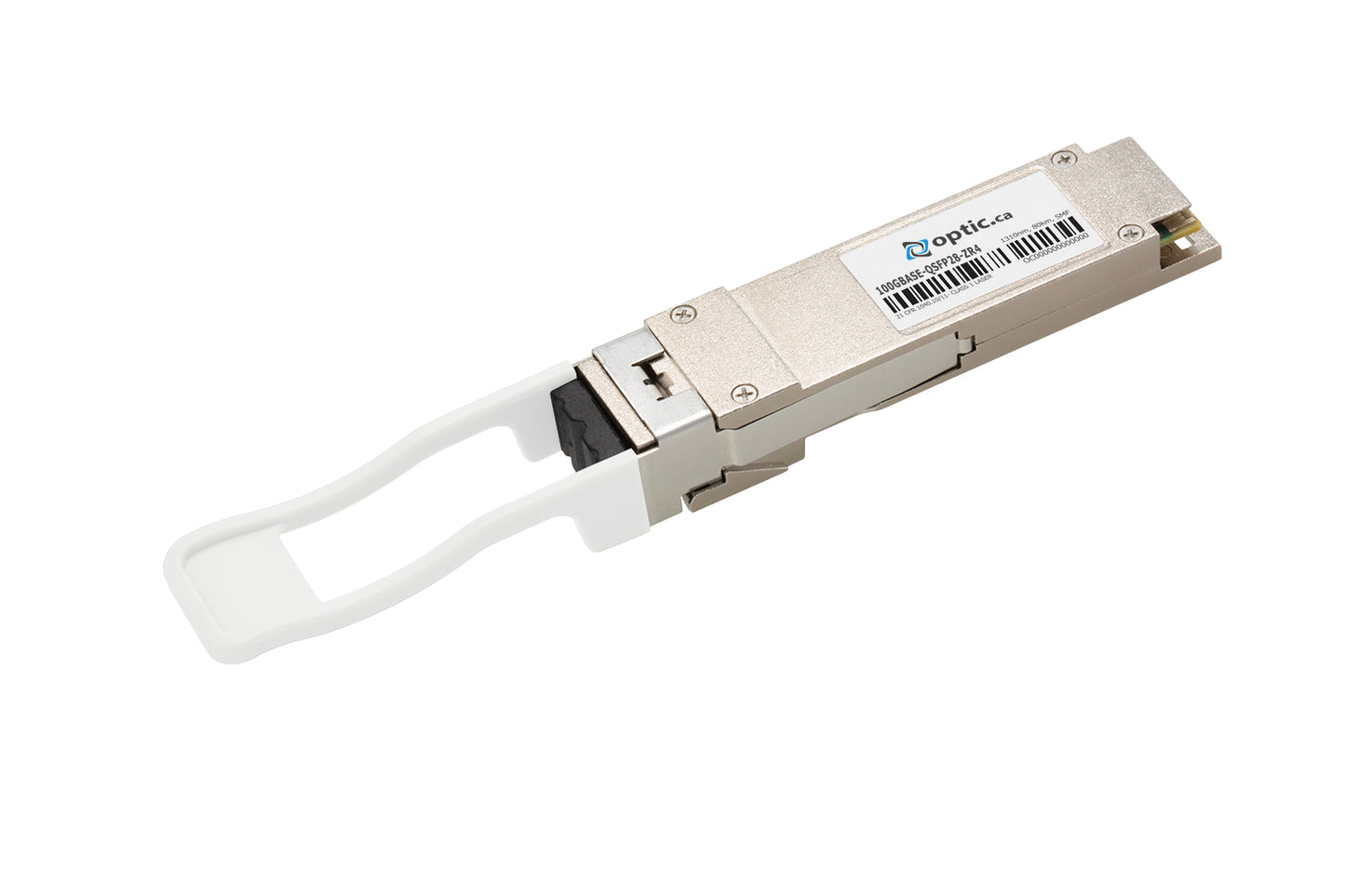

100GBASE-ZR4 QSFP28, LWDM 1295.56NM-1309.14NM, 80KM, SMF LC DDM, 100% ARISTA COMPATIBLE
Arista® compatible 100GBASE-ZR4 QSFP28 optical transceiver is the ideal solution for data transmission where speed and reach are mission critical. It provides link speeds of 100G over a distance of up to 80km over Single-Mode fiber.
The LC UPC connector type guarantees a low insertion loss and a high-quality transmission. The signal is multiplexed and demultiplexed within the transceiver and is transmitted over 4 wavelengths, from 1295nm to 1309nm. Features built-in DDM (Digital Diagnostic Monitoring) and is covered by a lifetime warranty.
Item Attributes
| Compatible Brand | Arista® |
| Type | Transceivers |
| Cable Type | Single-Mode Fiber |
| Operating Temperature | COM (0 °C to 70°C) |
| Fiber Count | 2 Fibers / Duplex |
| Wavelength | LWDM: 1295.56 / 1300.06 / 1304.59 / 1309.14nm |
| Data Rate | 100GBASE - 100 Gbps |
| Form factor | QSFP28 |
| Max Reach | 80km |
| Connector Type | LC UPC |
| DDM | Yes |
| Transceiver Type | ZR4 |
| TX Optical Power | 2dBm to 6.5dBm (Per Lane) |
| RX Sensitivity | -28dBm (Per Lane) |
Share
-
Global Compatibility, Canadian Precision
Every Optic.ca transceiver is coded in-house for flawless compatibility and thoroughly tested to ensure performance across global networking platforms—trusted worldwide, proudly Canadian.
-
Reliability Engineered for Performance
Our transceivers meet or exceed Tier 1 MTBF standards. Rigorously tested for seamless integration, they deliver OEM-level reliability—while keeping your project on budget.
-
Lifetime Warranty, Total Peace of Mind
Backed by our lifetime warranty* and unwavering commitment to quality, Optic.ca transceivers deliver the mission-critical reliability your network demands.
