Technologie Optic.ca Inc.

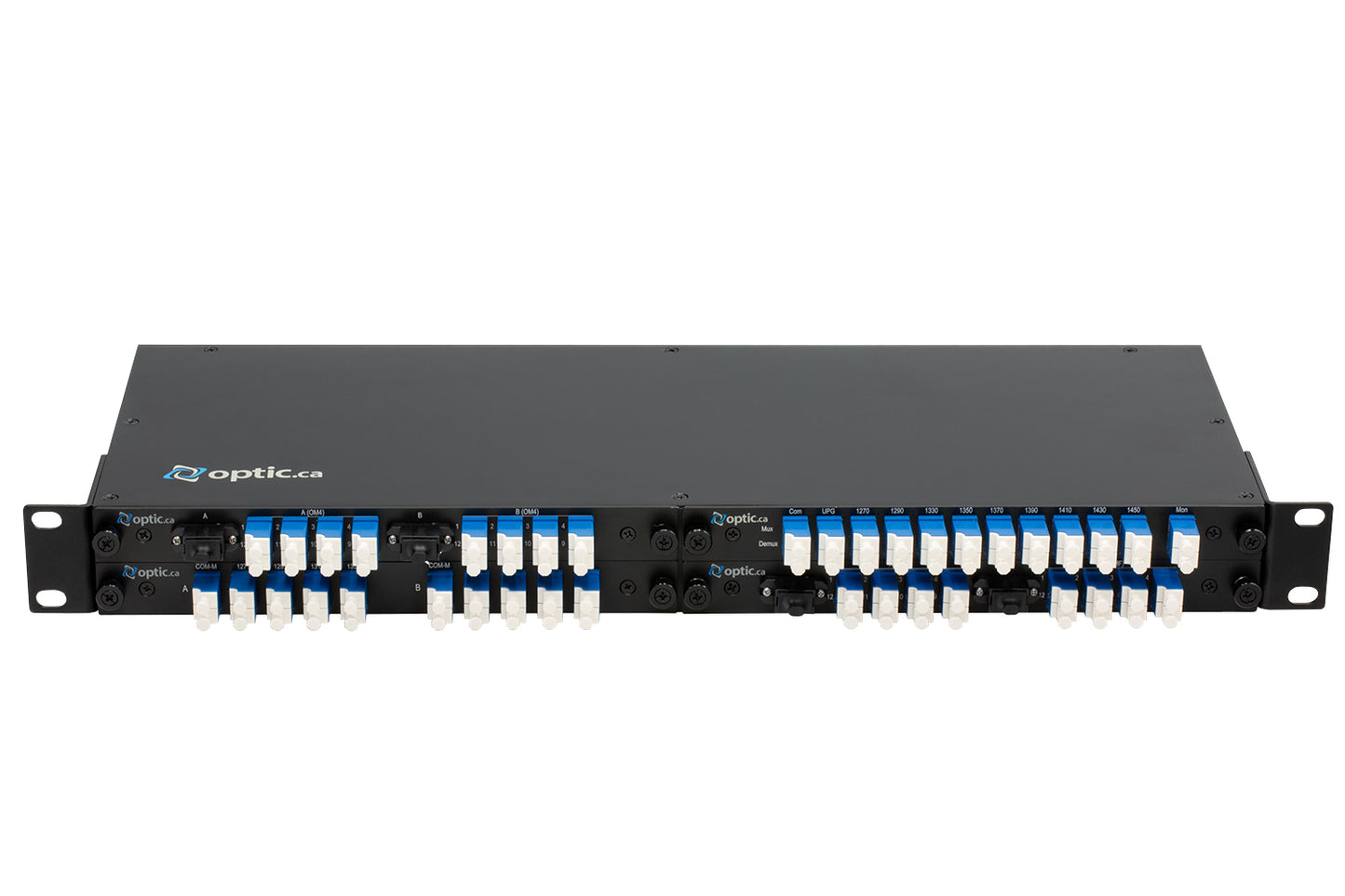

WDM MUX/DEMUX Injector Duplex 2ch, 1310 and 1550nm, LGX4-SP

WDM operating wavelength
1310nm and 1610nm
WDM channels spacing ±50nm
WDM Connectors type
Other ports connectors type
LC/UPC Senko®
Com LC UPC Senko®
Multiplexer insertion Loss
Demultiplexer Insertion Loss
Typ 1.01dB Max 1.2dB
Typ 0.99dB Max 1.2dB
Channel ripple Max 0.5dB
Polarization dependent loss Max 0.1dB
Polarization mode dispersion Max 0.10ps
Isolation, adjacent channel
Isolation, non-adjacent channel
Min 30dB
Min 40dB
Directivity Min 50dB
Return loss Min 45dB
Fiber type SMF-28e
Operating temperature
Storage temperature
-5 to +75 Celsius
-40 to +85 Celsius
Form factor Technologie Optic.ca LGX4-SP
L:152 x W:190-215 x H:21.5mm
View full details
  • Advanced Multiplexing & Active Solutions

    From passive multiplexing and OADM to TAP systems and active networking equipment, Optic.ca delivers custom-engineered designs optimized for signal integrity, meeting the most complex infrastructure requirements.

  • Built for Reliability, Tested for Performance

    Our networking solutions are designed with mission-critical components and undergo rigorous testing to ensure seamless integration and dependable operation in any environment.

  • Competitive Warranty, Confidence Included

    Backed by a solid warranty and strict quality standards, Optic.ca products provide the assurance you need for long-term infrastructure stability.
