Technologie Optic.ca Inc.

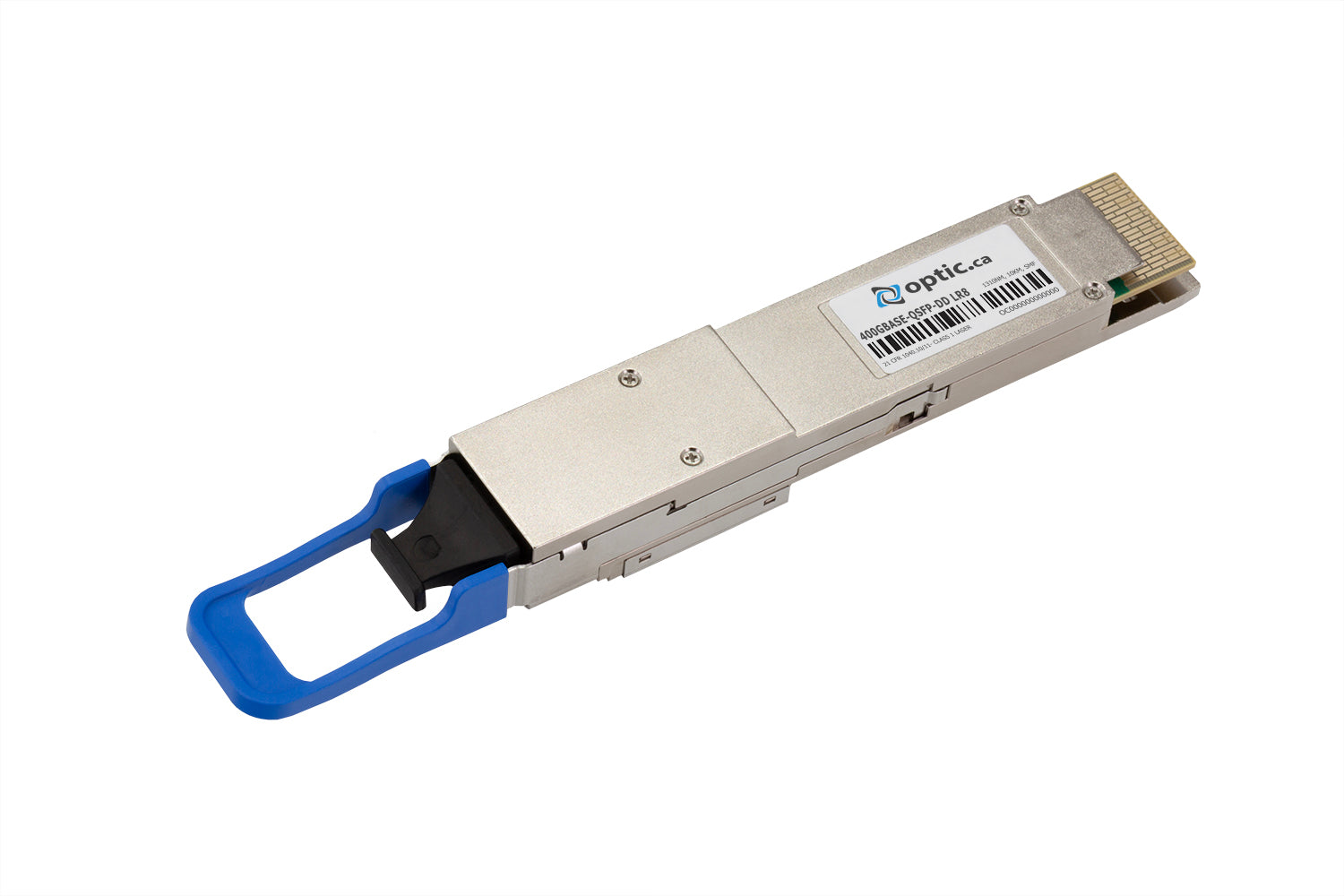

400GBASE-QSFP-DD LR8, 1273NM-1309NM LWDM, 10KM, SMF, 100% INFINERA COMPATIBLE
Introducing the 100% Infinera® compatible 400GBASE-LR8 QSFP28 optical transceiver, a high-speed solution designed for long distance transmissions. Using Single-mode fiber and a LC/UPC duplex connector, it can reach speeds of 400Gbps over a distance of up to 10km.
Item Attributes
| Compatible Brand | Infinera® |
| Type | Transceivers |
| Cable Type | Single-Mode Fiber |
| Operating Temperature | COM (0 °C to 70°C) |
| Fiber Count | 2 Fibers / Duplex |
| Wavelength | 1272.55nm to 1310.19nm |
| Data Rate | 400GBASE - 400 Gbps |
| Form factor | QSFP-DD |
| Max Reach | 10km |
| Connector Type | LC UPC |
| DDM | Yes |
| Transceiver Type | LR8 |
| TX Optical Power | -2.8dBm to 5.3dBm (Per Lane) |
| RX Sensitivity | -9.1dBm (Per Lane) |
Share
-
Global Compatibility, Canadian Precision
Every Optic.ca transceiver is coded in-house for flawless compatibility and thoroughly tested to ensure performance across global networking platforms—trusted worldwide, proudly Canadian.
-
Reliability Engineered for Performance
Our transceivers meet or exceed Tier 1 MTBF standards. Rigorously tested for seamless integration, they deliver OEM-level reliability—while keeping your project on budget.
-
Lifetime Warranty, Total Peace of Mind
Backed by our lifetime warranty* and unwavering commitment to quality, Optic.ca transceivers deliver the mission-critical reliability your network demands.
